Description

Technical Specifications LCD Panel

Diagonal Size             : 32” / 43″ / 55″
Aspect Ratio              : DSS playe16r :A9PK
Pixel Pitch                    : 0.315mm×0.315mm
Response                    : 4ms
Resolution                  : 4K , UHD, Full HD
Contrast Ratio         : 2000:1
Brightness(cd/m2): 450~500 cd/m2
Display Area               : 803.5(H)×1428.4(W)
Color                              : 16.7 Million color
View Angle                  : H:890/890 V:890/890

Audio

Speaker                              : 2 x 8Ω,10W

Physical Features

• Glass: 5mm, MOHS 7 Grade Tempered Glass, Explosion-proof
• Temperature: Working: 0°C ~ 50°C; Storage: -20°C ~ 60°C
• Humidity: Working: 10% to 90% (Non-condensing); Storage: 0% to 95% (Non-condensing)
• Noise: Working < 25 dBA
• Product Dimension: 902(W) x 2100(H) x 83(D) mm
  Floor Stand Set: 770(W) x 45(H) x 450(D) mm
• Power: AC 100~240V~ / 2~5A / 50–60Hz
• Consumption: Max ≤ 100W, Standby ≤ 1W

Other

• Accessories                        : Quick Start Guide, Warranty Card, USB Mouse,, Power Cord
• Certification                      :BIS, ROHS, CE, FCC, ISO9001
• Warranty                           : 12 Months

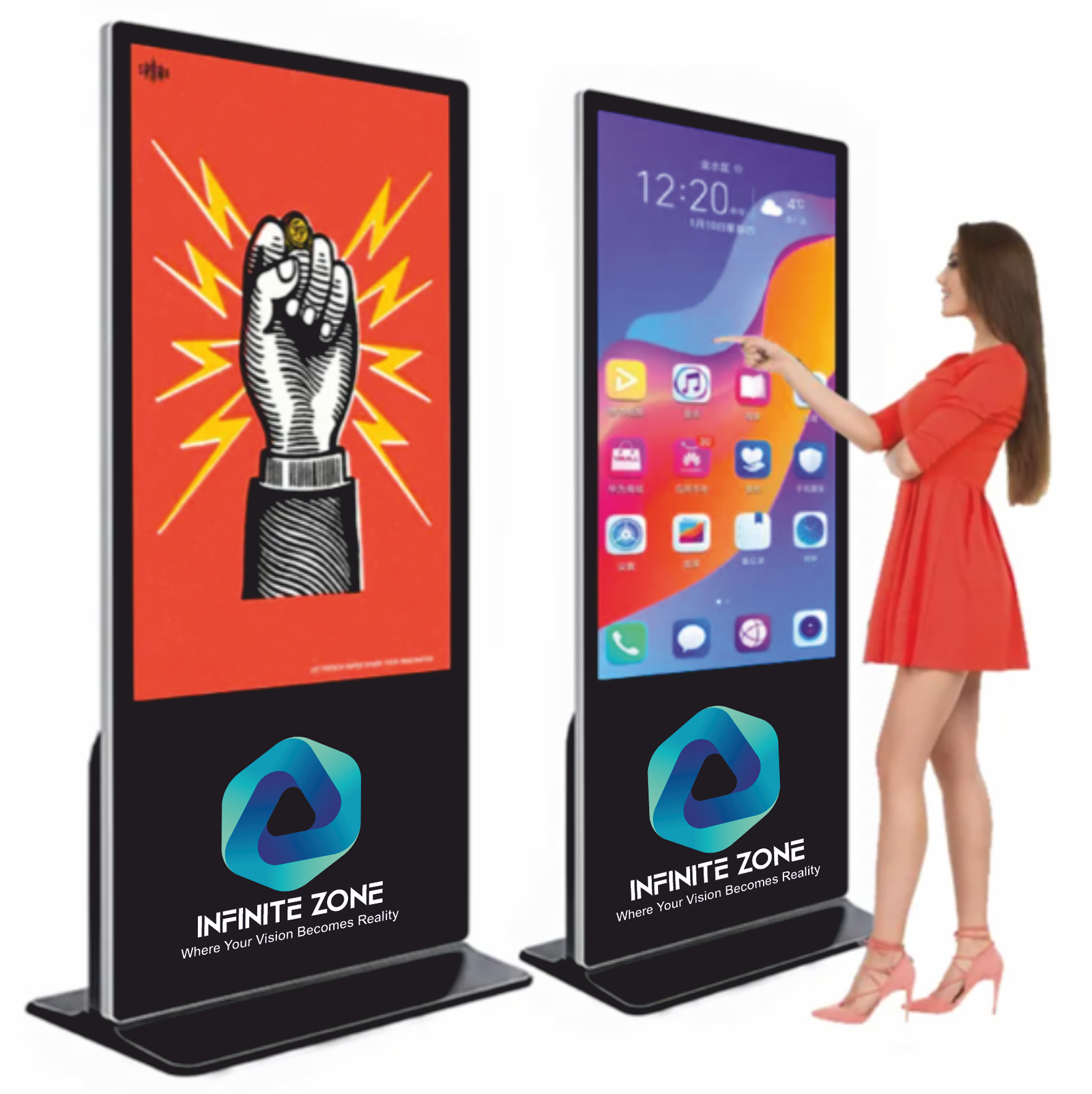

  Touch Segment – Floor Digital Display Standee – Signage Read

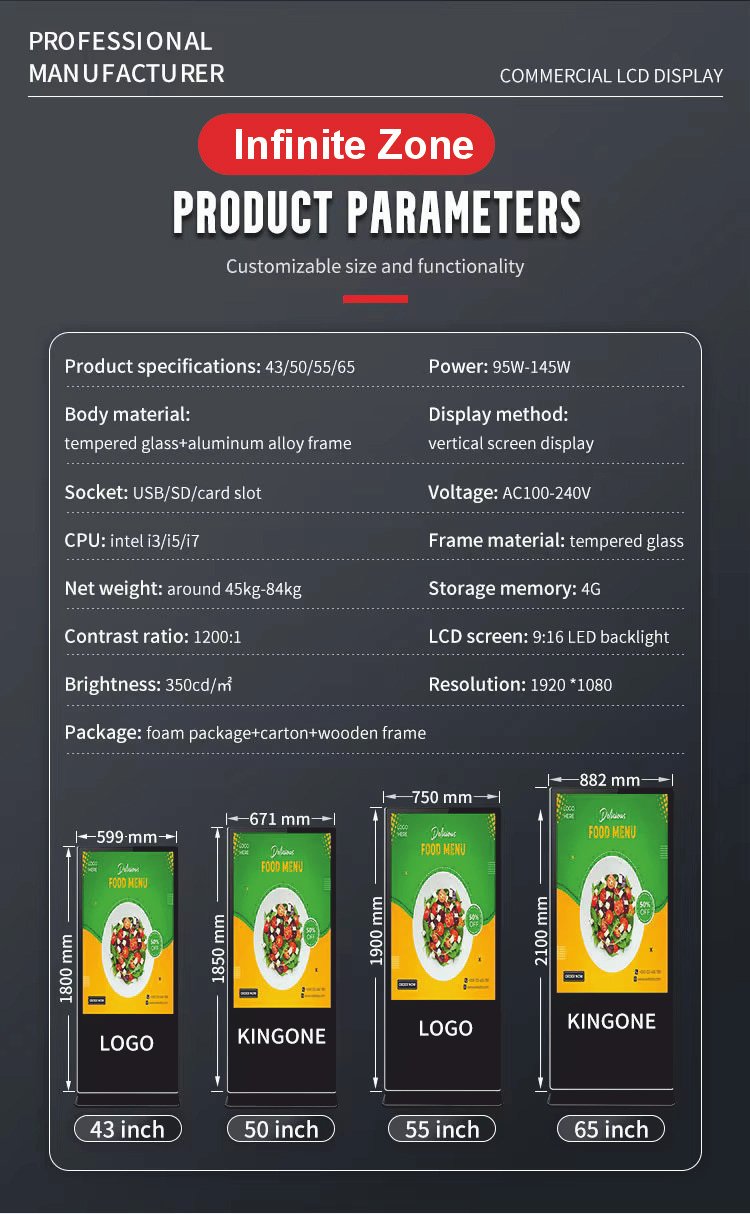

  Size	32″	43″	55″
  Aspect Ratio	16:09	16:09	16:09
  Active Display Area (mm)	697.6 x 392.2 (H x V)	914.2 x 529.4 (H x V)	1209.6 x 680.4 (H x V)
  Response Time	8 ms	8 ms	4 ms
  Resolution	Full HD 1920 x 1080	Full HD 1920 x 1080	Ultra HD 3840 x 2160
  Contrast Ratio	1500:1	1500:1	2000:1
  Brightness (cd/m²)	300–350	450–500	450–500
  Android/Windows	Android 11 / Windows Supported	Android 11 / Windows Supported	Android 11 / Windows Supported
  Multiple Touch	Yes	Yes	Yes

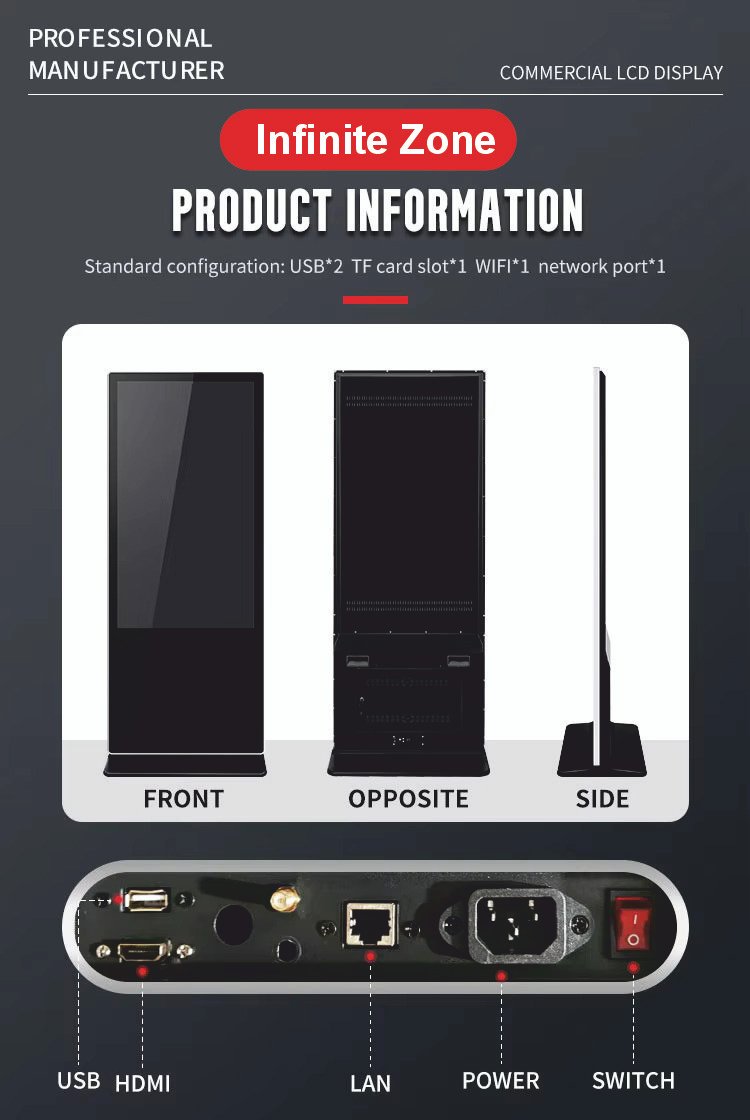

  Connectivity	WiFi, HDMI, USB, LAN	WiFi, HDMI, USB, LAN	WiFi, HDMI, USB, LAN
  Screen Touch Type	Capacitive / Infrared	Capacitive / Infrared	Capacitive / Infrared
  Standee Body	Metal Body, Powder Coated, Durable	Metal Body, Powder Coated, Durable	Metal Body, Powder Coated, Durable
  Dimension (mm)	Base H: 1148 x W: 448	Base H: 1148 x W: 448	Base H: 1148 x W: 448
  Commercial Panel	E-IPS (24×7 Performance)	E-IPS (24×7 Performance)	E-IPS (24×7 Performance)
